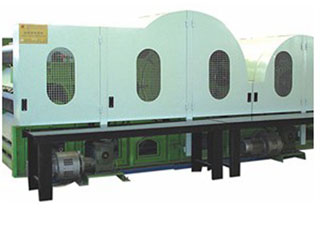

Carding Machine

Description
Due to the different requirements of fiber, the kinds of carding equipments have various structures, which can be divided into single cylinder double doffer type, single cylinder single doffer type, double cylinder double doffer type, etc. This carding machine is used for carding materials. The carding equipment is located in the spinning process between the blow room and the drawing frame. It cleans and parallelizes the fibers. The resulting card web is then formed into a tape and placed into a can. The working elements are taker-in, main cylinder, card top and doffing cylinder. This kind of carding machine is suitable for 1.5d~20d*38~65mm, polyester, polypropylene fiber, viscose, nylon and other man-made fiber carding.

Features
1. The carding equipment is equipped with guards that completely enclose it. It is equipped with electrical safety switches, and the machine power will be shut down as soon as the guards are opened.
2. The machine can be built with 25 or 32 inch working width.
3. The steel rolls of the carding machine are in precision to a three-thousandths degree run-out. This means we can safely set your rolls at a ten-thousandths gap, giving maximum carding ability. All of the rolls are covered with metallic wire instead of fillet wire, again giving you the best carding quality and allowing you to change fiber color or type with less than five minutes cleaning time.
4. The carding equipment is stable in operation and low in noise. Lubricating oil is only needed to be checked regularly to reduce the wear and tear of the carding machine.

Advantages
Adopting advanced technology, all the carding equipments in our company are guaranteed in quality. The after-sale maintenance period for the carding machine is 1 year. Our equipments have been exported to India, South Africa, Vietnam, Egypt and other countries and regions. Those machines are favored by customers all over the world. In addition, our company obtains a lot of quality certification, thus we have the ability and confidence to manufacture the equipment the customer ordered.

Components of Carding Equipment
The carding machine consists of frame, card clothing, the main cylinder and doffer, work roll and strip hair roller, doffer, clutter, roller, suction fan, etc.

Parameters of Carding Equipment
Width: 1550, 1850, 2050, 2250, 2500mm
Cylinder: Diameter¢1230mm
Chest Cylinder: Diameter¢850mm
Doffer: Diameter¢492mm
Net Speed: 20~45m/min
Stripping: Knife of Laura
Attention
1. When choosing this kind of carding machine, you should inform the manufacturer that you will use what kinds of raw material and produce what kinds of products. In thus way, the manufacturer can equip with suitable cloth to improve the carding quality and yield.
2.Pay attention to safety of carding equipment in utilization. When the phone is switched on, the first thing you should do is to open warning device and remind others that the carding machine is running soon. When the machines are in operation, the protective cover is strictly prohibited to open and the equipment should not be touched. When there is abnormal sound in machine, it should stop immediately, and check.
3.To prolong the service life of carding equipment and better operation, it must be regularly maintained, and the lubricating oil and screws on every link should be inspected timely.
4.According to international standard, the carding machines will be packed in wooden box by ocean shipping.

Founded in March, 2001, Shanghai Nonwoven Equipment Co., Ltd. is a professional manufacturer of the production of all kinds of nonwoven machines and nonwoven cloth in China. Our main products include opening machine, cotton feeding machine, carding machine, mesh machine, needle machine, high-speed needle machine, ironing machine, trimming machine, hard cotton drying machine, non-glue cotton dryer, imitation silk cotton dryer and stenter setting machine.
